Lay out and indentify parts

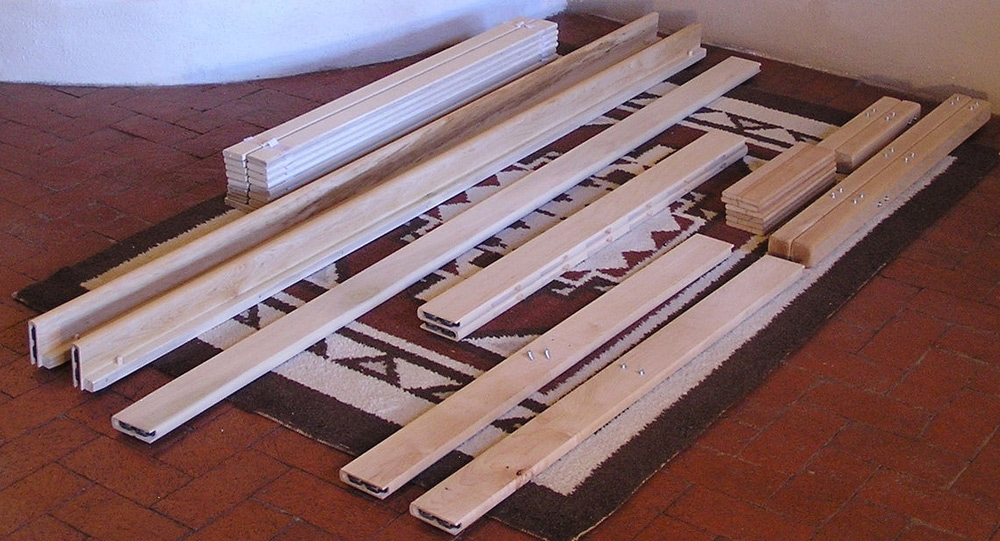

Step 1: Take parts out of the box. All assembly should be on a rug or carpet to prevent scratching the wood as you assemble. Identify the parts. In this picture we have from left to right: slats, rails, center support, drilled crosspieces, slotted crosspieces and headboard slats, and legs.

You will need a #2 phillips screw driver and a rubber mallet or hammer with a block of wood (in box) to prevent denting. A friend is handy!

Install shoulder screws in crosspieces

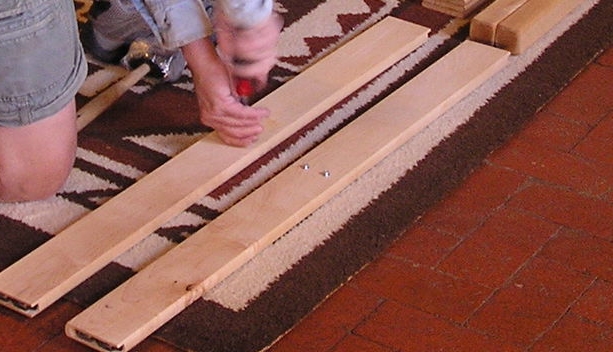

Step 2: Install 4 5/8″ shoulder screws in headboard and footboard drilled crosspieces. These shoulder screws will support the center support.

Important notes

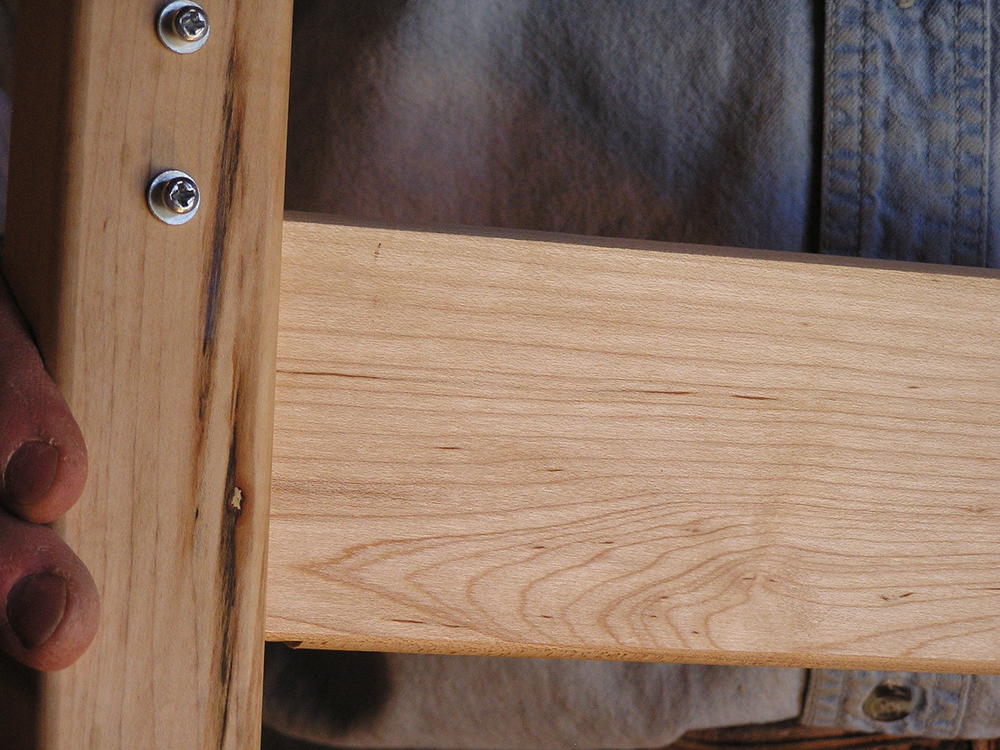

Important: The lower set of screws on the legs attach to the crosspieces, the higher set of screws attach to the side rails. The ends of the crosspieces and rails are tapped down over the screws.

Attach crosspiece to leg

Step 3: Assemble the foot board. Attach the drilled crosspiece to the foot board leg using the lower set of shoulder screws. The shoulder screws on the foot board face inward. Push the crosspiece down over the shoulder screws.

Finish foot board assembly

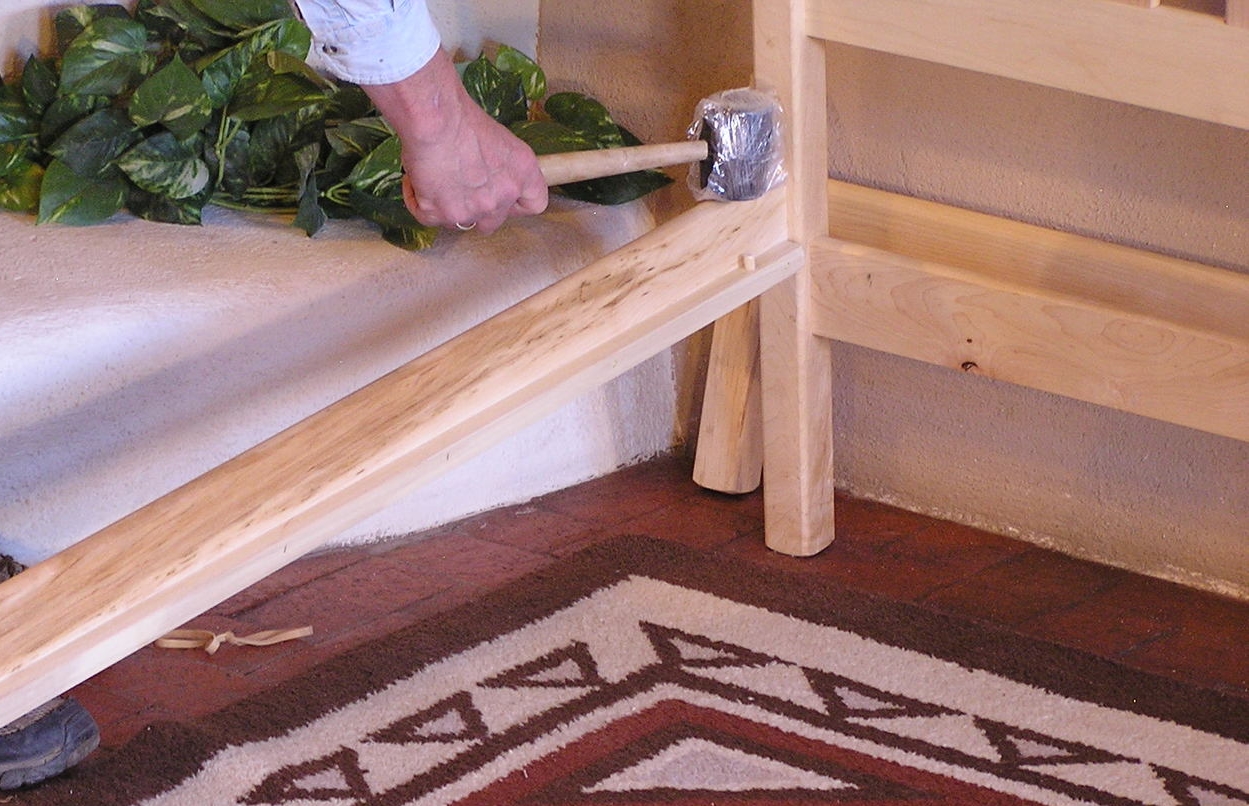

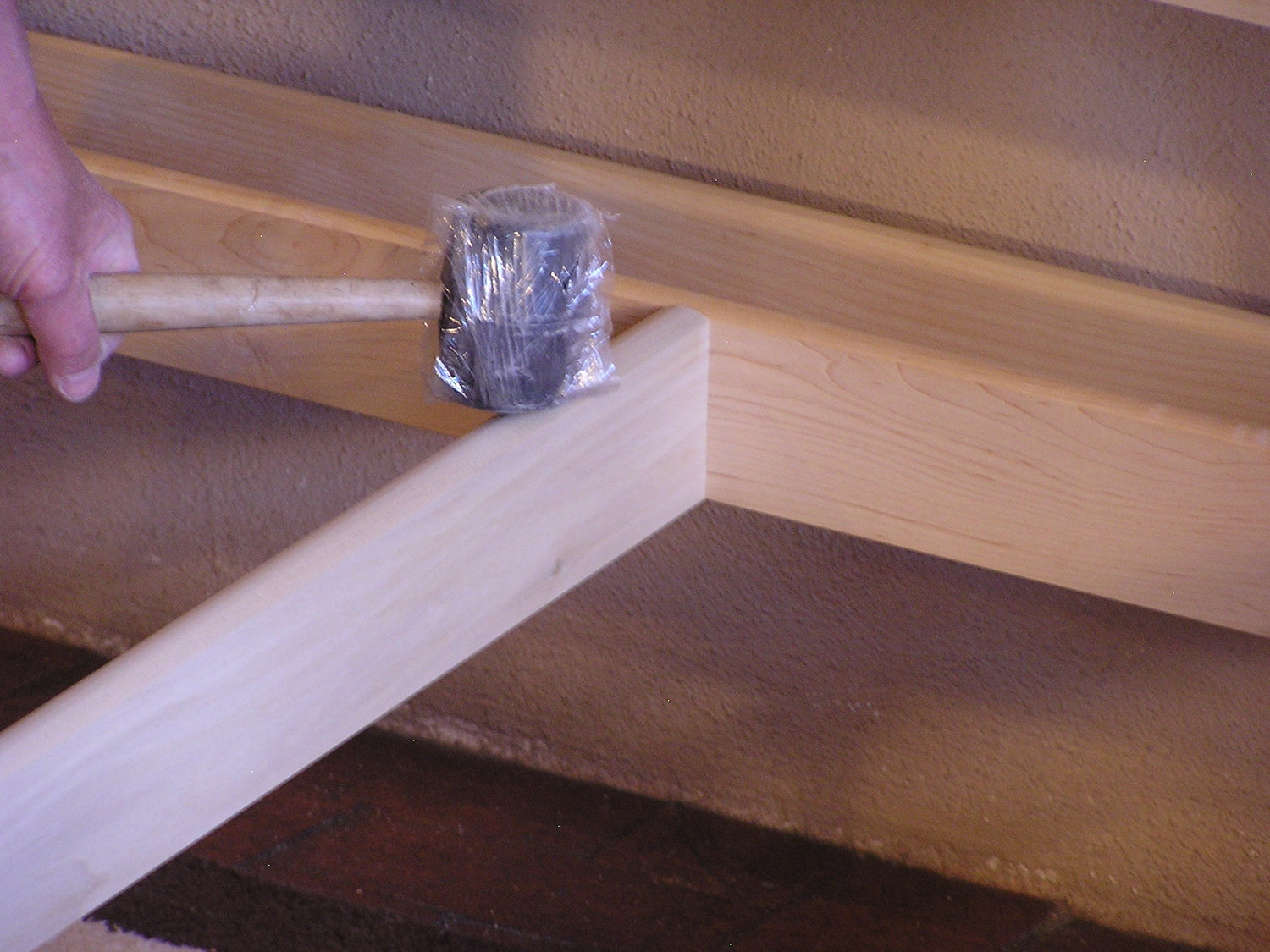

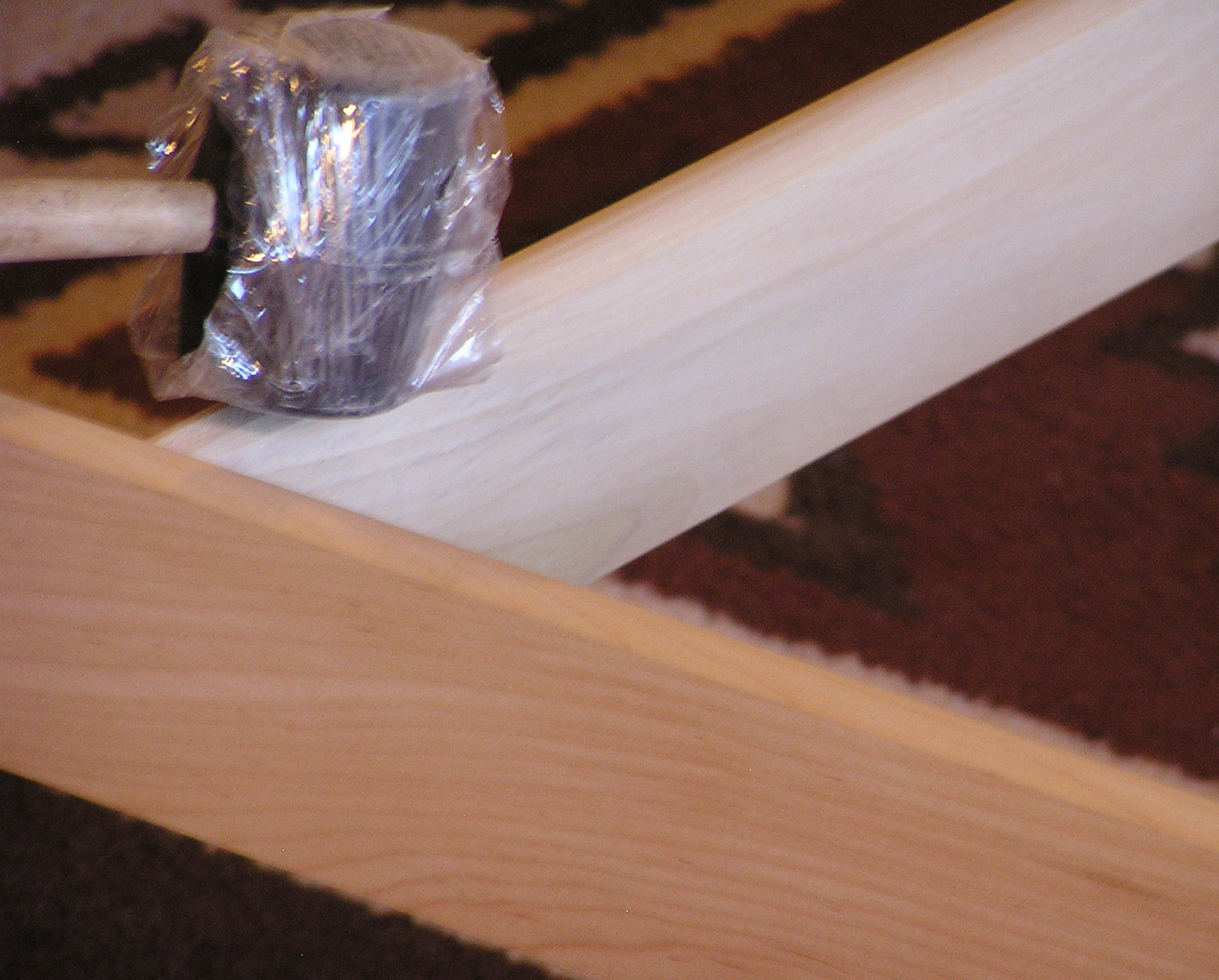

Step 4: Using a rubber mallet (in a baggie to prevent black marks) tap down crosspiece with firm smacks until snug. If using a hammer we send a block of wood to place on the wood before hammering. This prevents dents in the wood.

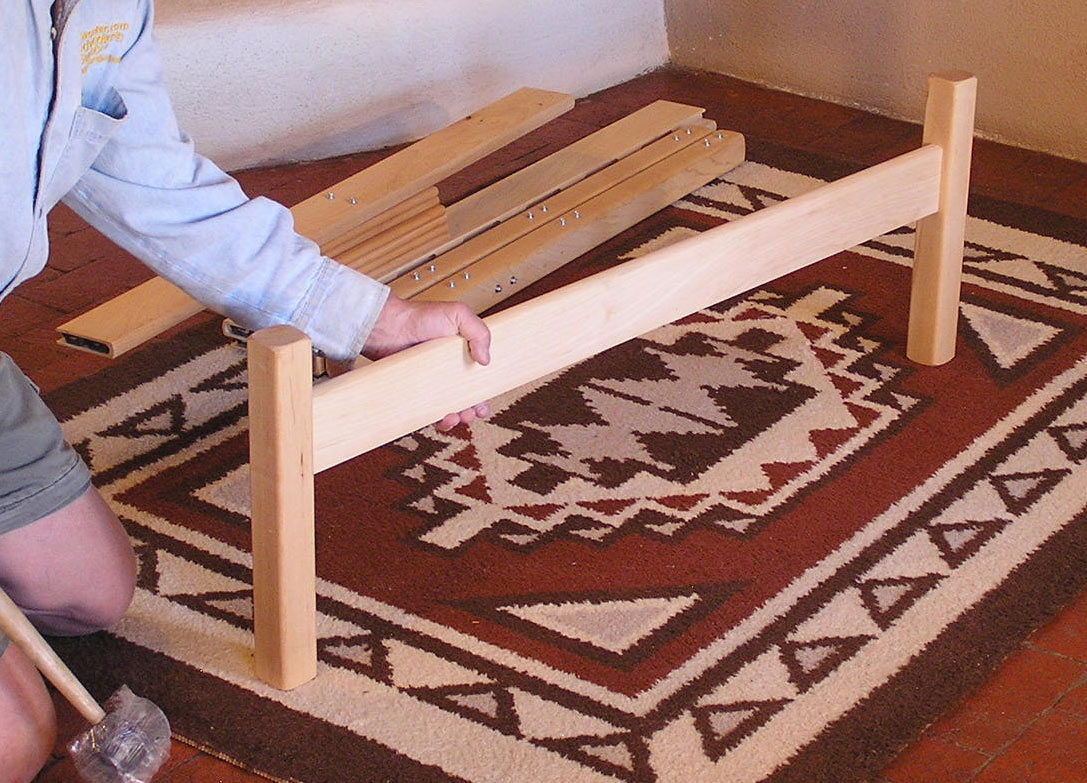

Foot board assembled

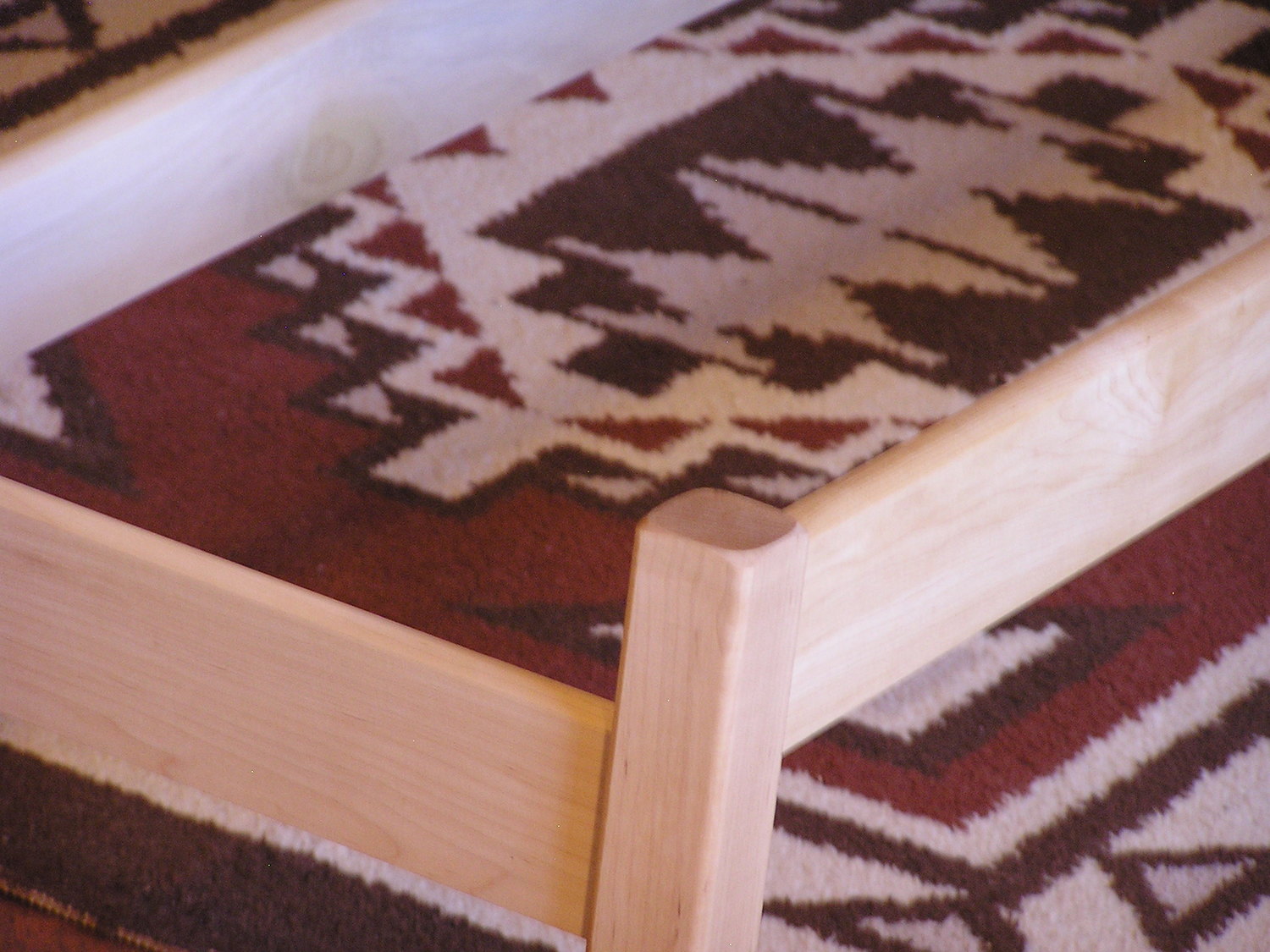

Step 5: Attach the other foot board leg and tap down snug. The foot board is finished.

Start head board assembly

Step 6: Assemble the head board. Attach the lower crosspiece, with shoulder screws, to the lower set of shoulder screws on the headboard leg. Line up the end of the crosspiece and shoulder screws and tap down snugly.

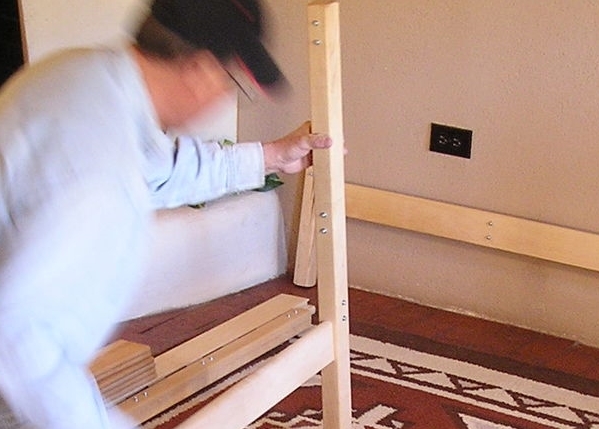

Set aside this assembly. You will add the other leg after you get the headboard attached to this leg.

Building the head board

Step 7: Assembling the mission head board uppers. This assembly is similar to other Nomad bed head boards. The is same procedure for the dowels for other head boards.

Lay out parts. Put the slats in order for color and uniformity so appearance is optimized. Prop up slotted crosspiece on edge. Use books or bed parts to hold up crosspiece. A friend is very helpful.

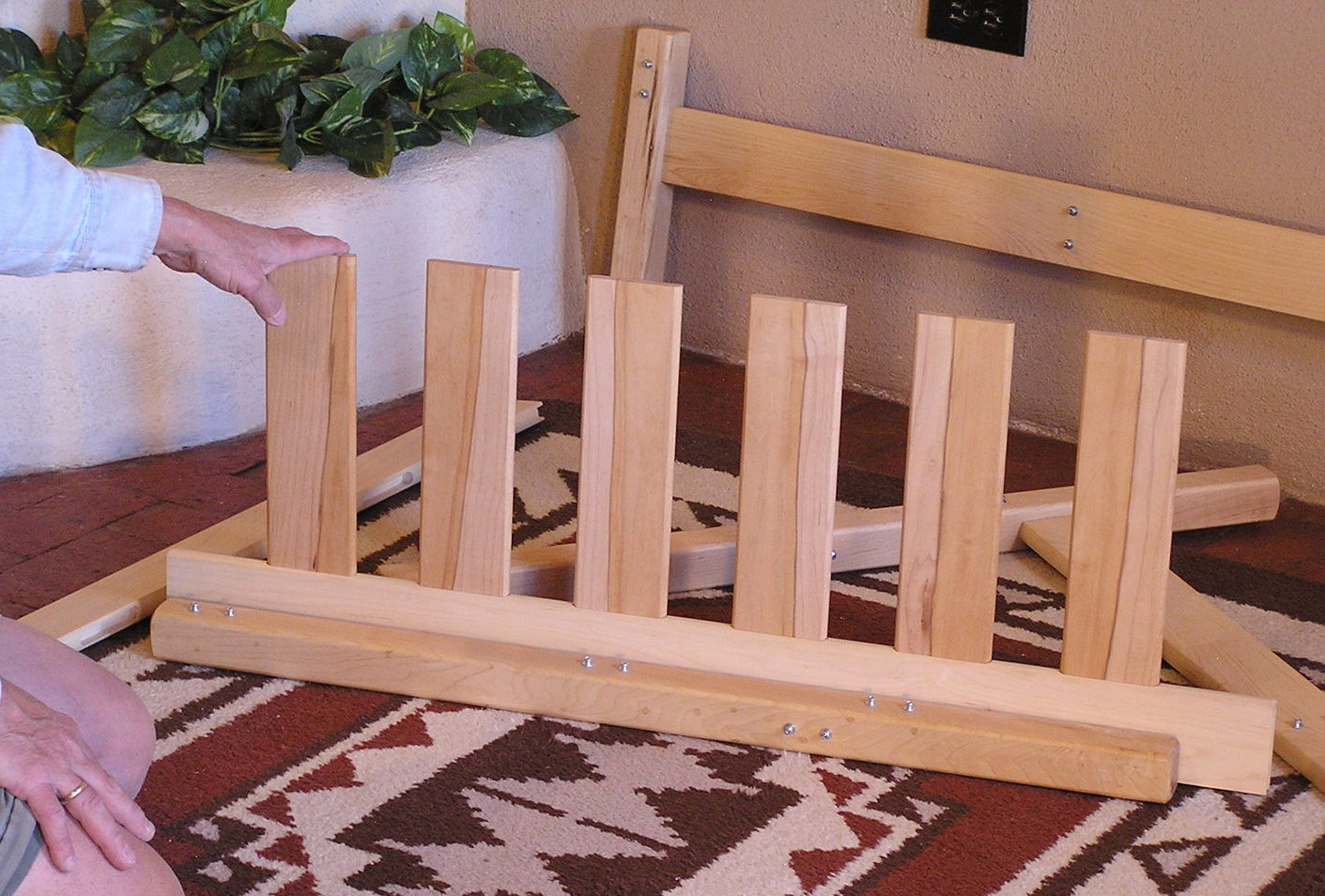

Step 7: With slotted crosspiece propped up install the head board slats into slots.

Headboard slats installed

All slats are in head board lower slotted crosspiece.

Installing head board slats

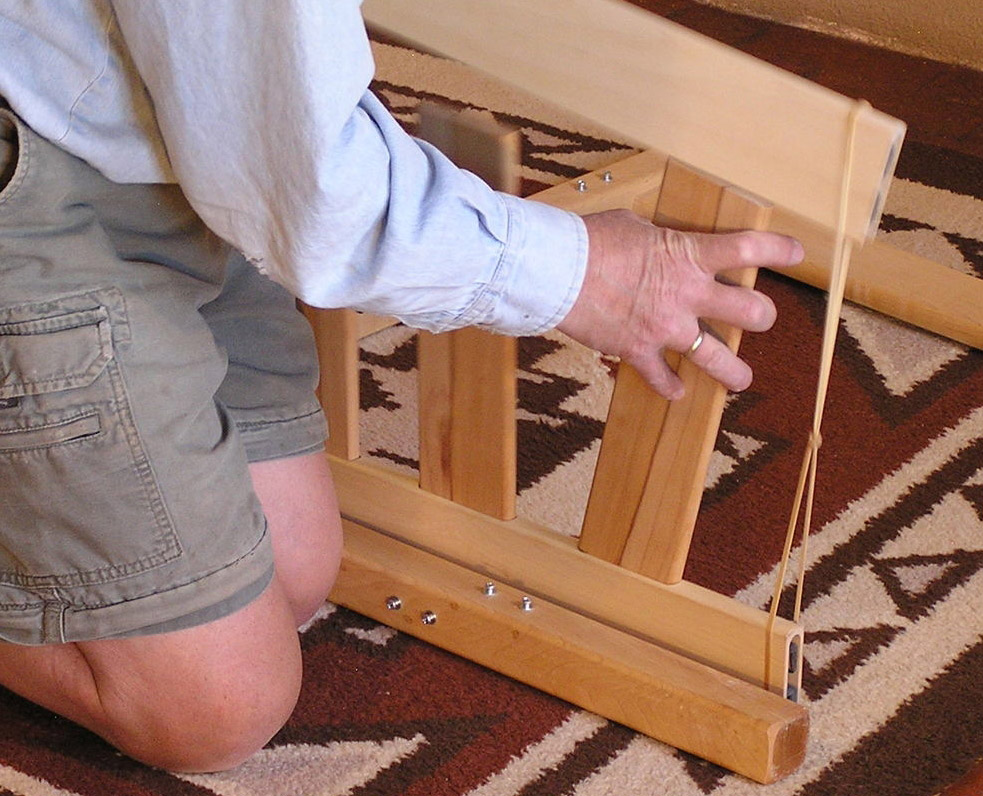

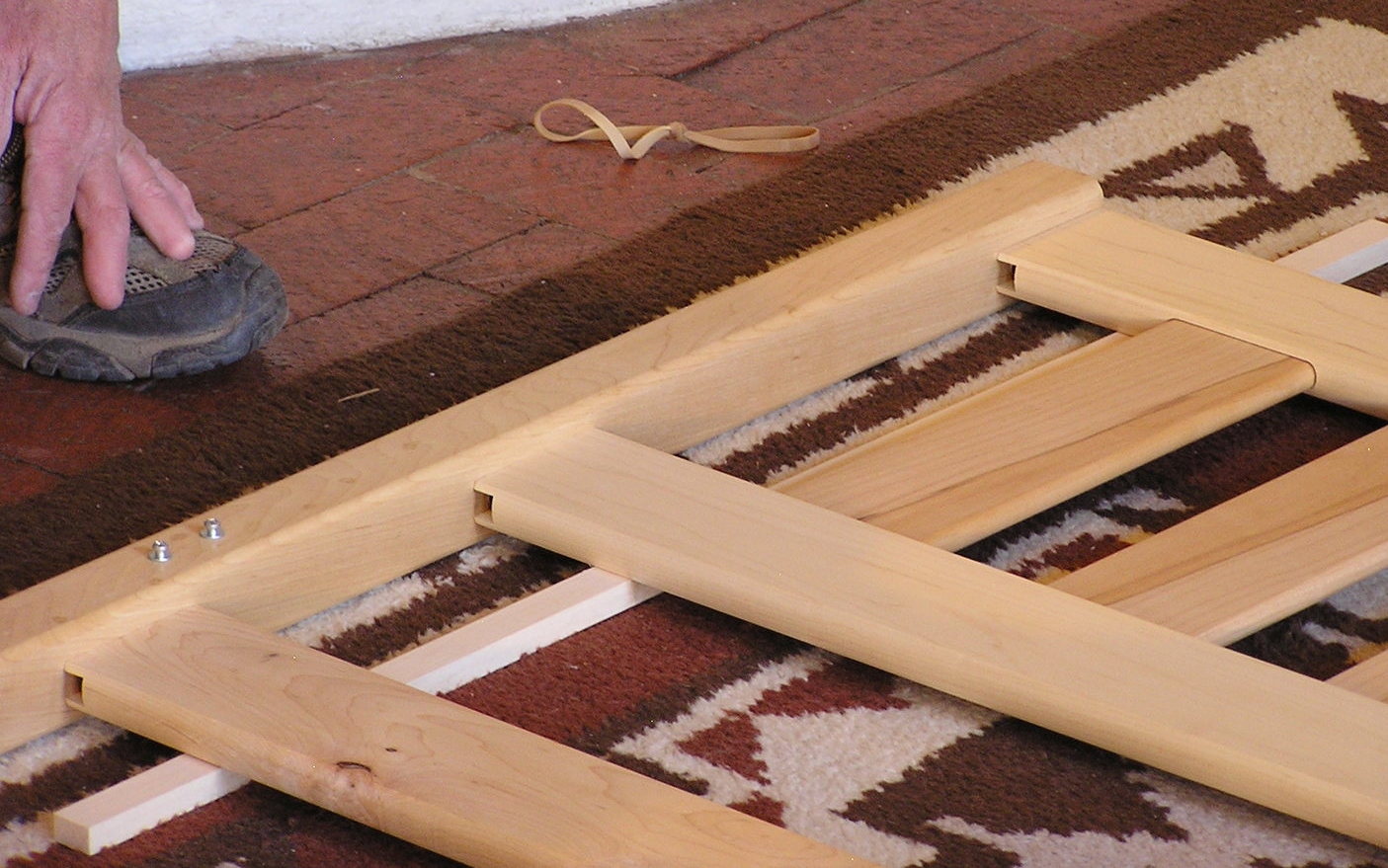

Step 8: This step can be done with the parts upright (as in photo) or laid down on the carpet. Put rubber band over the ends of both the lower and upper slotted crosspieces. Starting at one end fit the slats into the upper crosspiece slots. This is a good time for a friend but it can be done by one person.

Work across

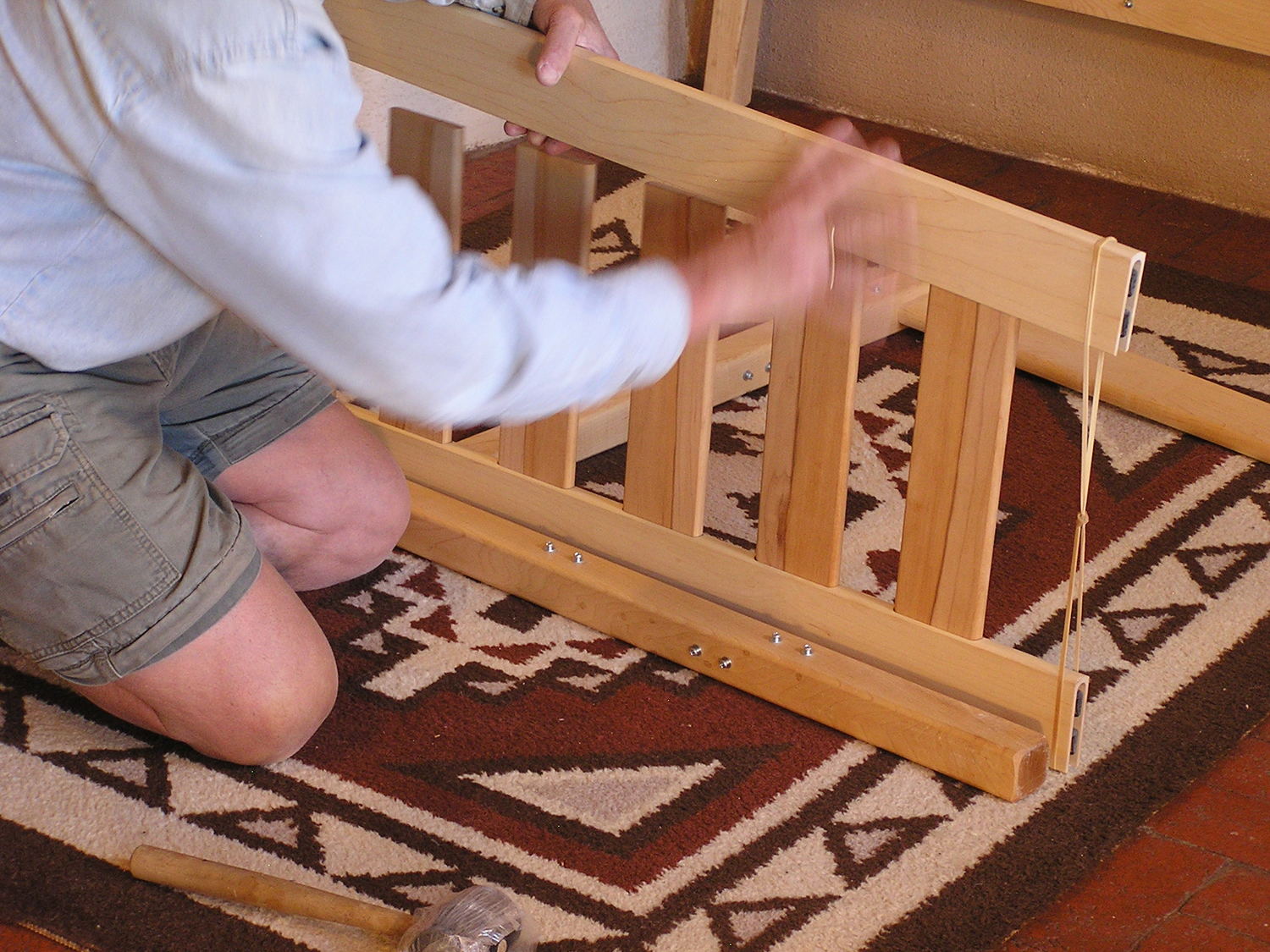

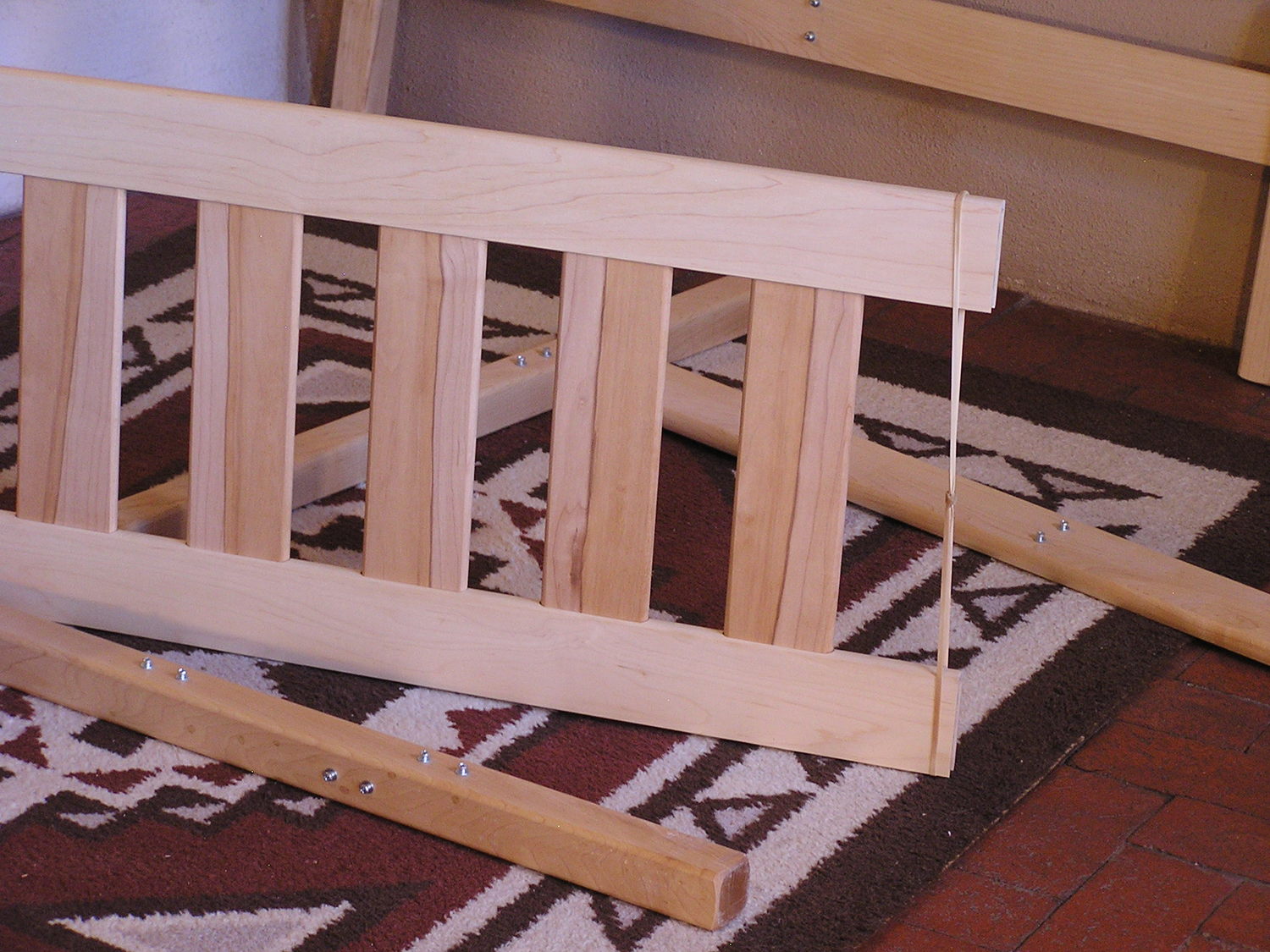

The rubber band holds the headboards together as you work across to align the slats into the slots of the upper headboard.

Installing the head board slats

Continue installing the slats until all are installed.

Finished head board slat structure

Attaching the slat structure to the leg

Step 9: Lay down the completed slat structure. Use alignment stick provided to support the end of the slat structure. Align the ends of crosspieces with the shoulder screws.

Aligning head board structures

Push ends of crosspieces down over the leg screws. Tap down the top crosspiece only. Snug up later.

Attach other head board leg

Step 10: Use alignment stick with parts flat on carpet. Line up all three crosspiece ends with the shoulder screws on other head board leg. Attach all crosspieces at the same time. Use alignment stick to hold crosspiece ends in place while lining up.

Snug up lower cross piece

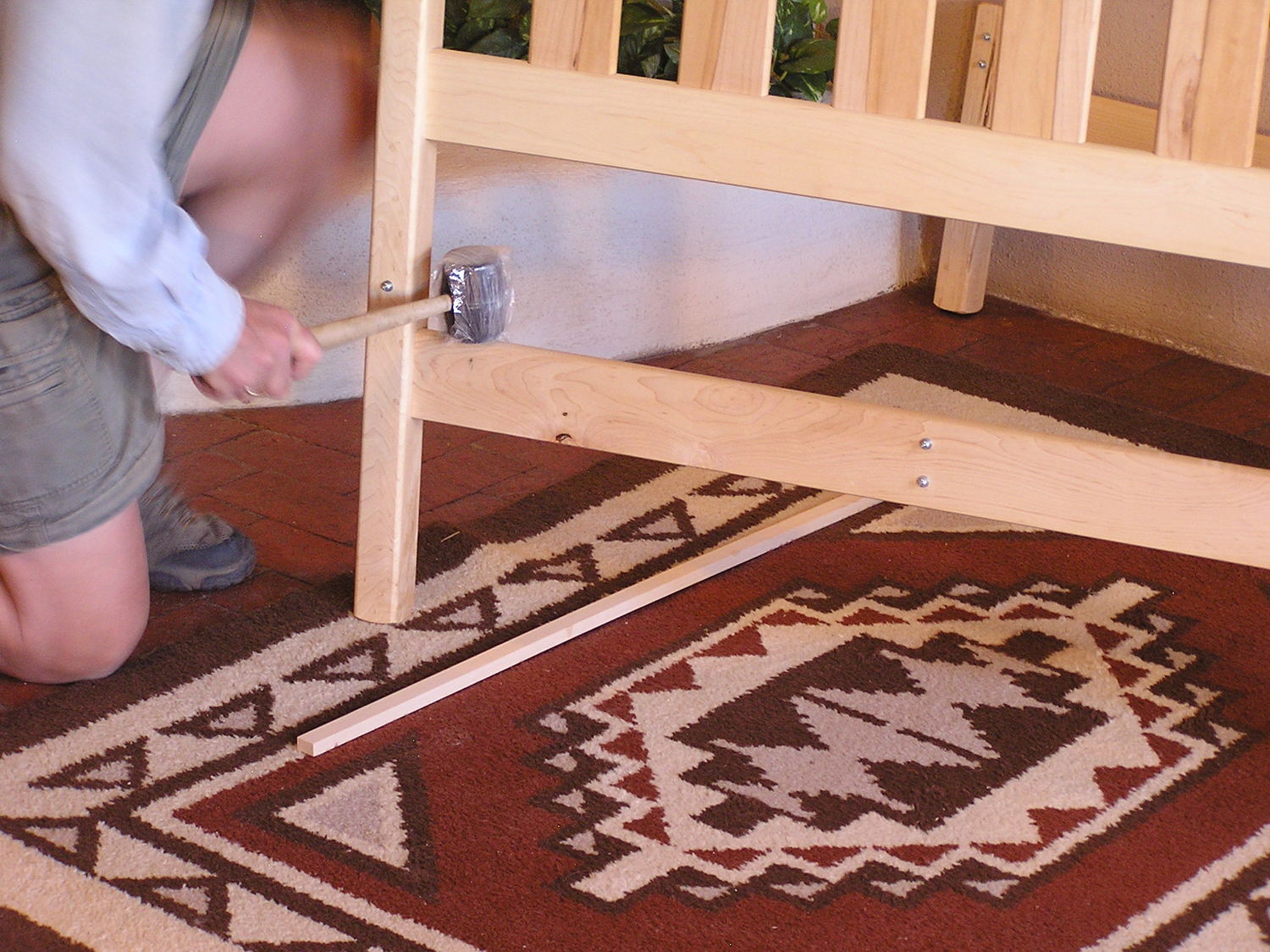

Step 11: Stand up head board unit. Tap down lower drilled crosspiece until snug.

Finish head board

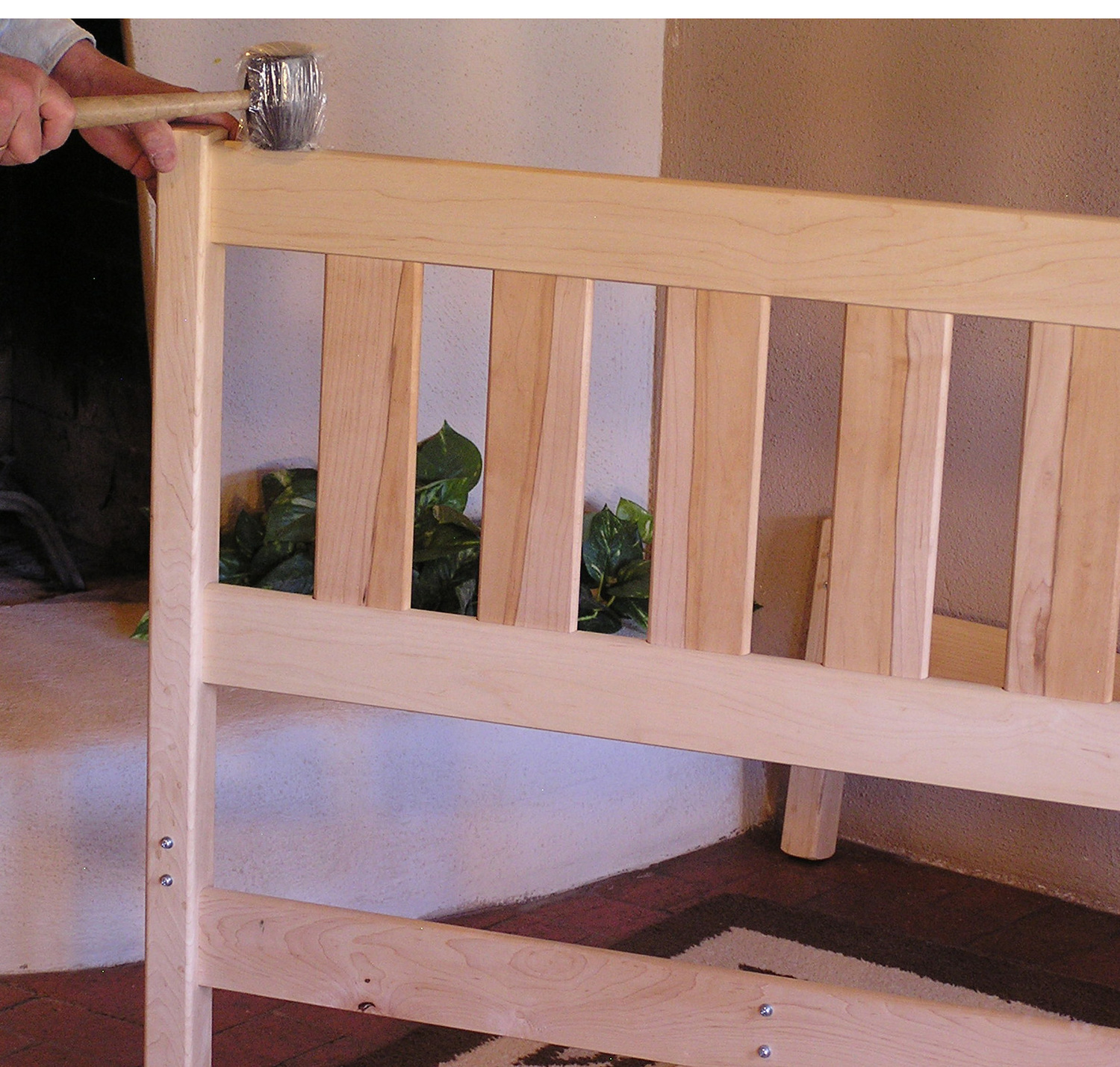

Tap down top slotted crosspiece until snug at both ends. All head and foot board joints should now be tapped down snug.

Ready to assemble head to foot

Lean up head board unit against wall.

Attach side rails

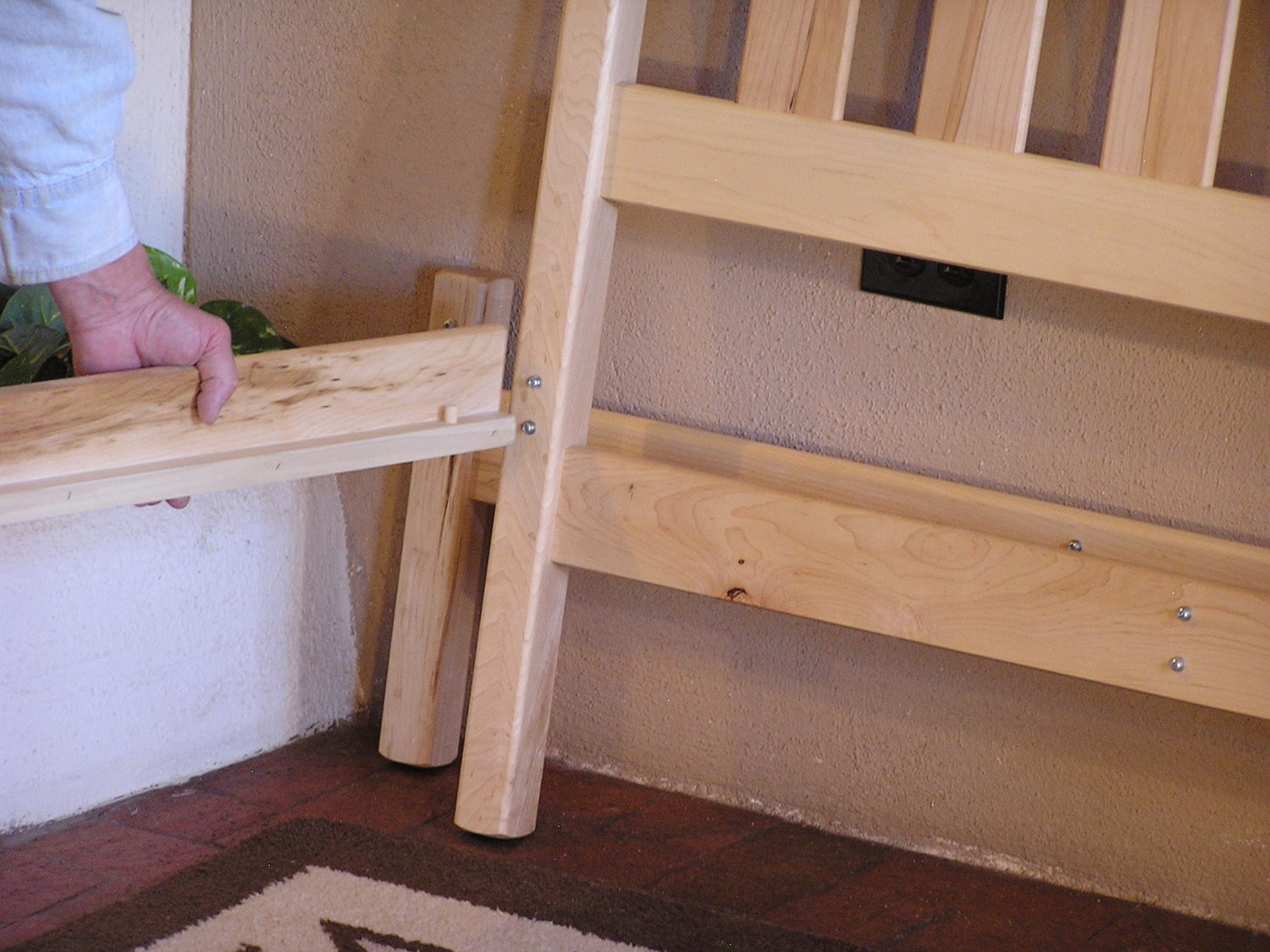

Step 12: Align side rail with shoulder screws on head board leg. Remember the top shoulder screw starts in the middle of the rail end. Be careful to get the screw properly located before tapping down.

Attach side rail

Tap down side rail until snug.

Attach other side rail

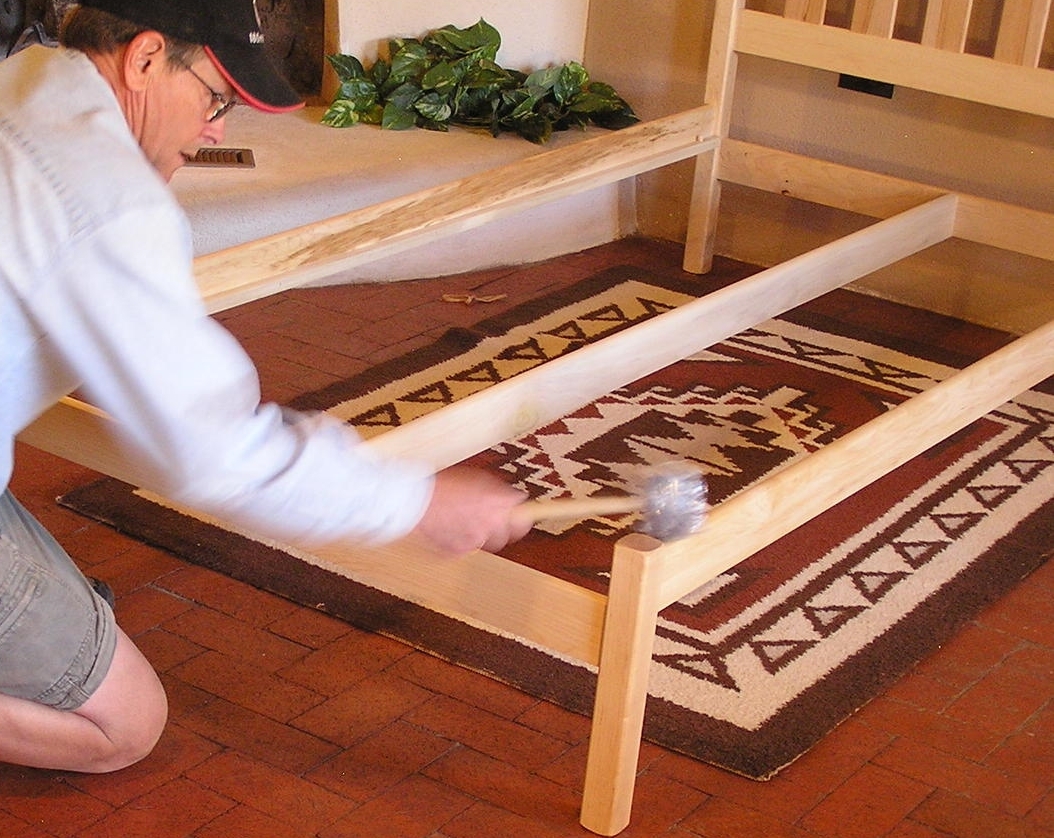

Attach other side rail and tap down snug.

Add center support

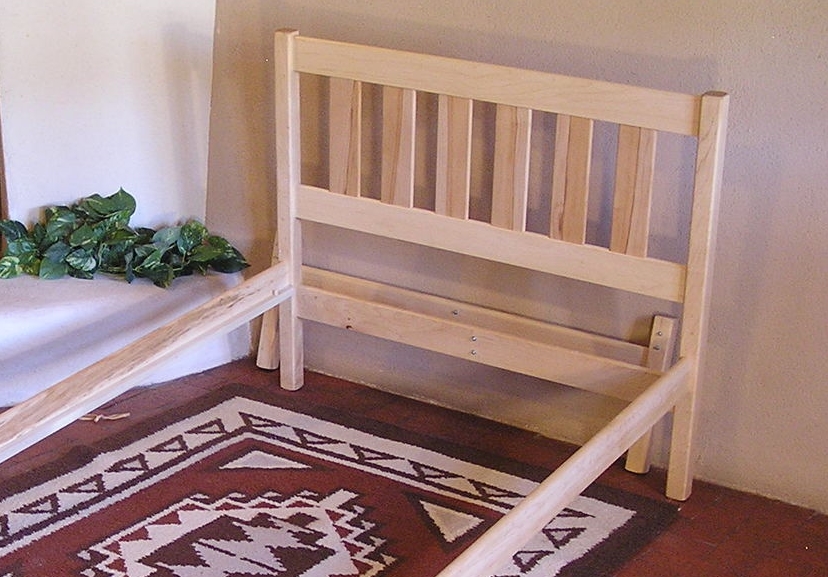

Loosely attach center support.

Secure the center rail

Now secure the center rail on the headboard crosspiece.

Line up foot board

Notice the alignment of the side rail (right side) and the foot crosspiece (lower board).

Join head board to foot board

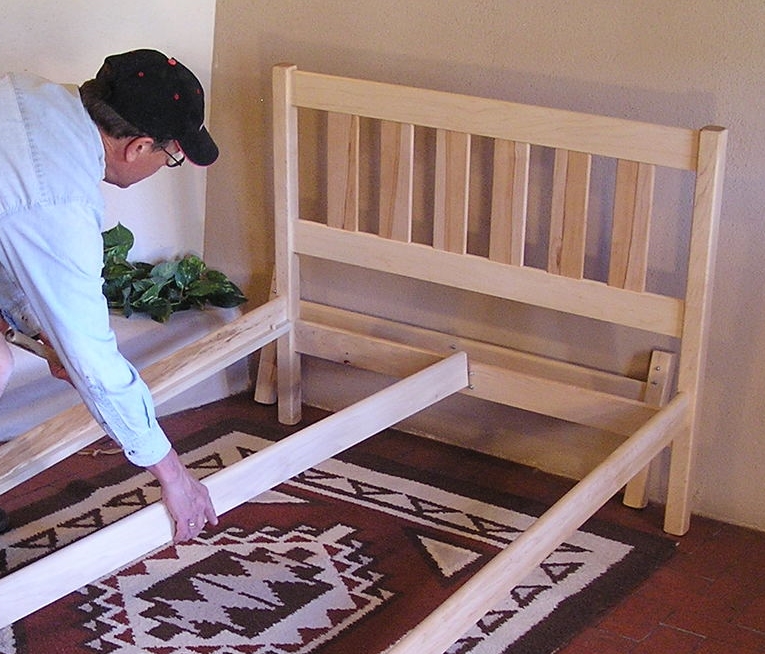

Step 13: Put foot board in place and line up one rail to foot board leg. Attach and tap down snug. Line up other rail to other foot board leg and tap down snug.

Attach center support

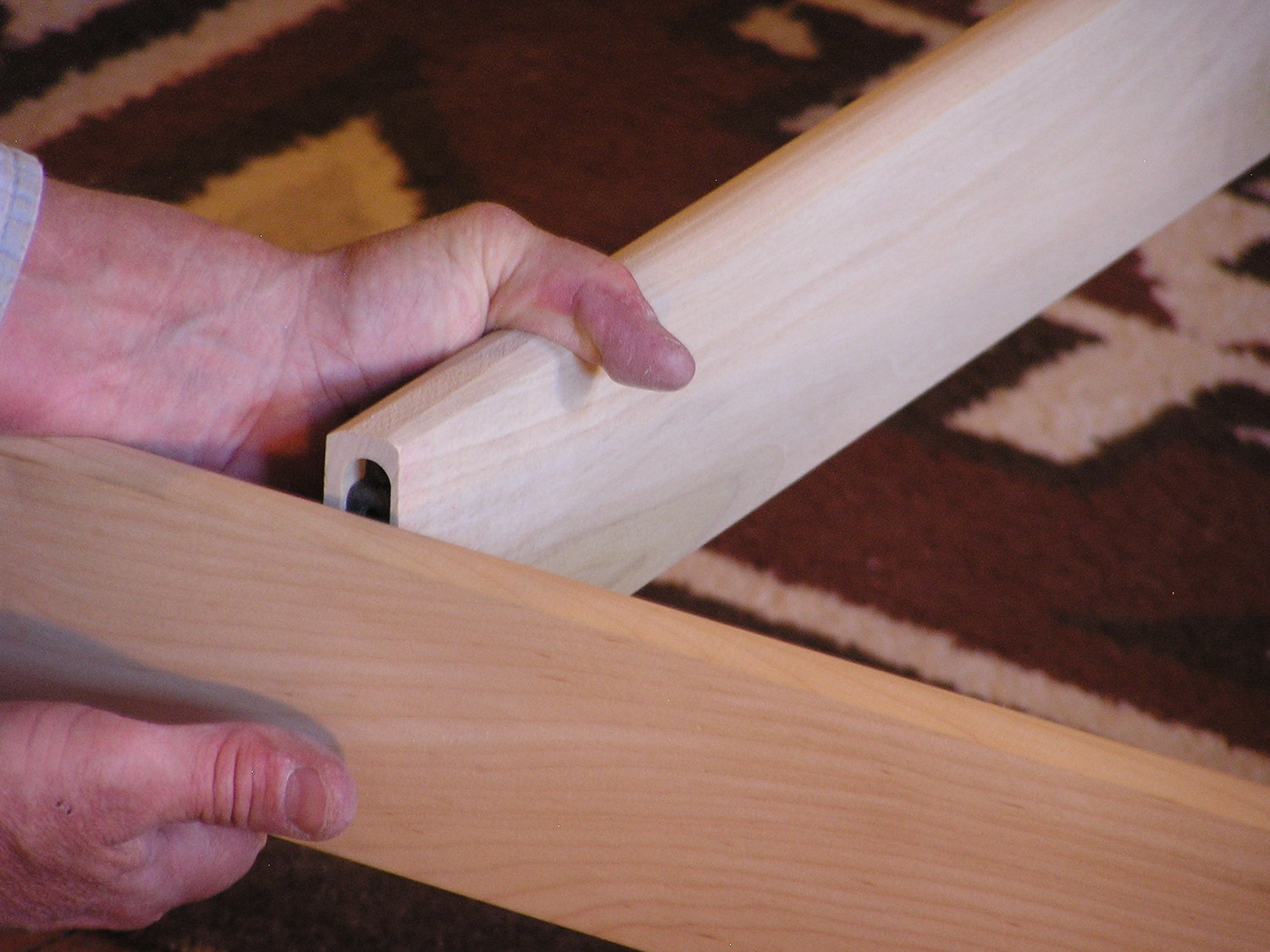

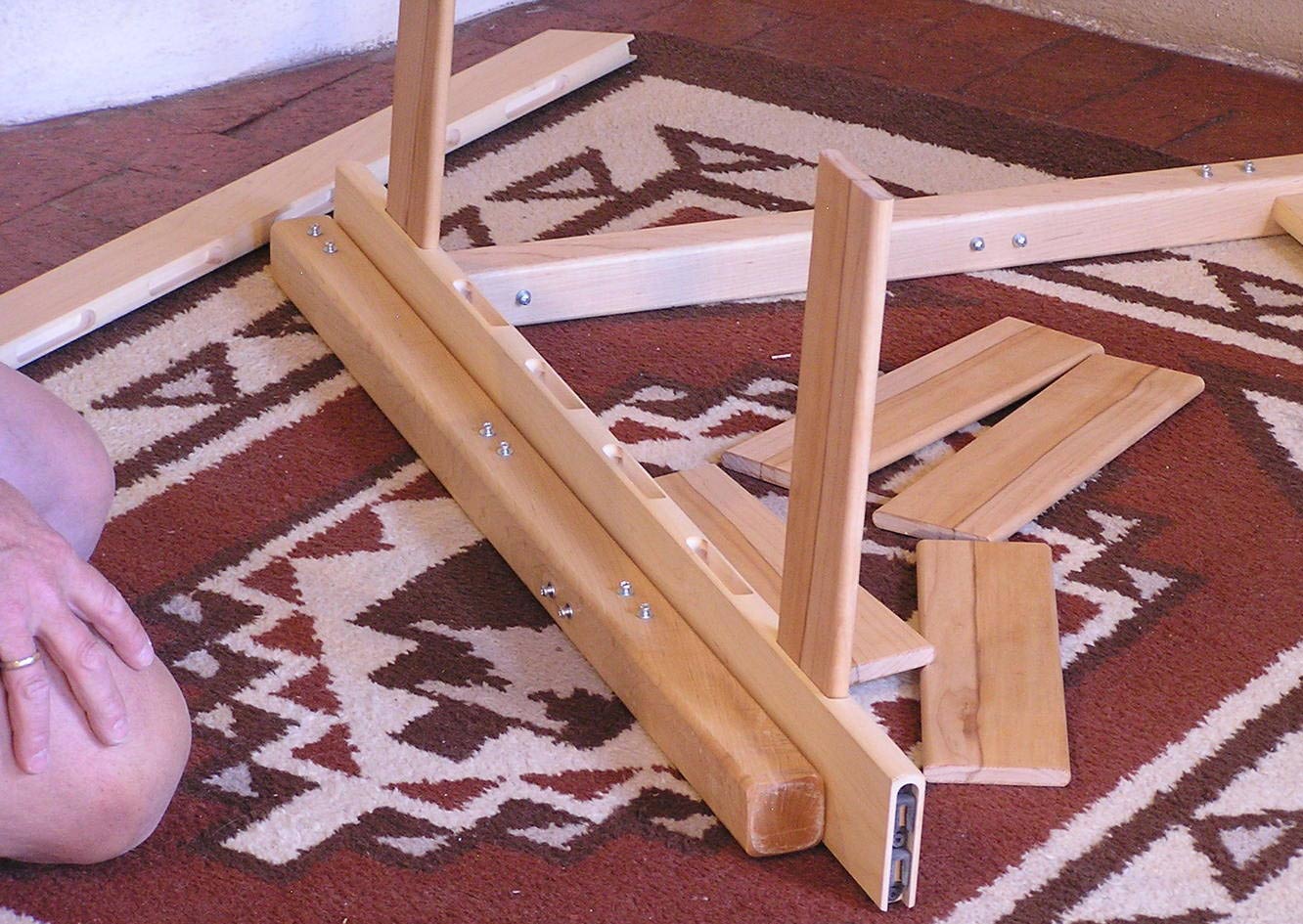

Step 14: Line up center support to shoulder screws in foot board crosspiece. This will be tight. Use one hand to push the center support back while pulling the foot board crosspiece forward. Then you can align the parts correctly.

Finish the frame

Tap center support down snug.

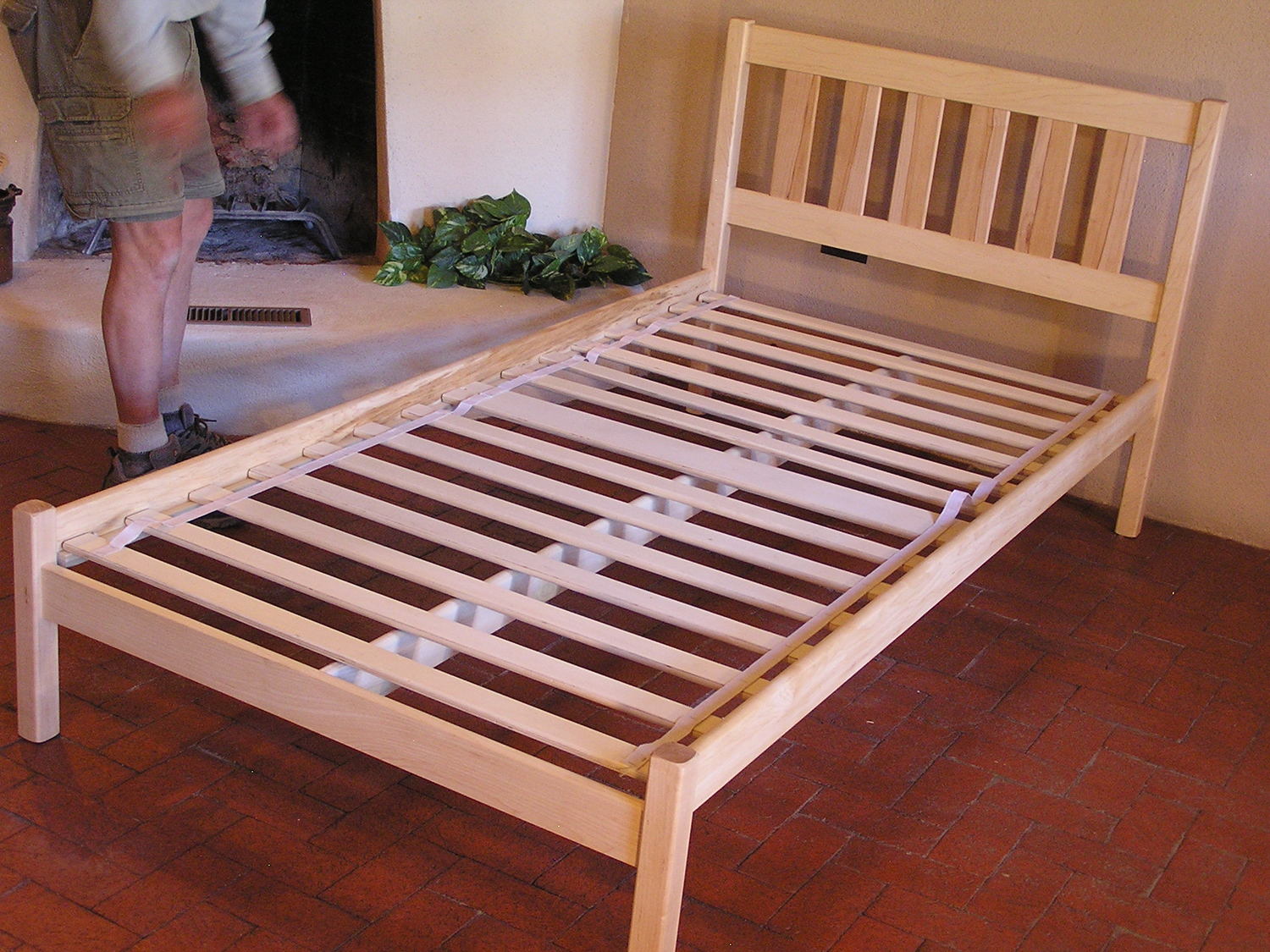

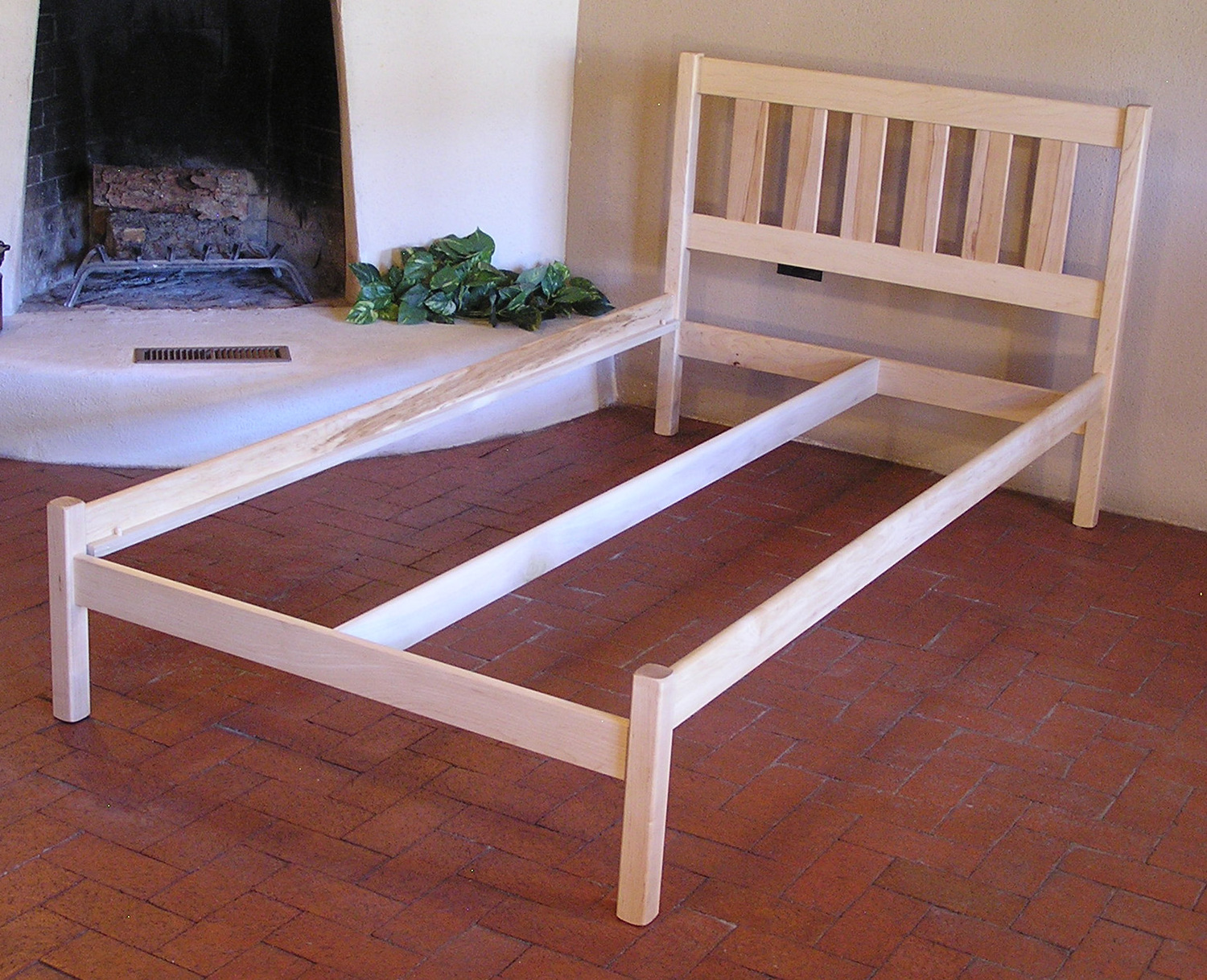

Bed frame complete

Pat your self on the back, sit back and admire your work.

Lay out the slat supports

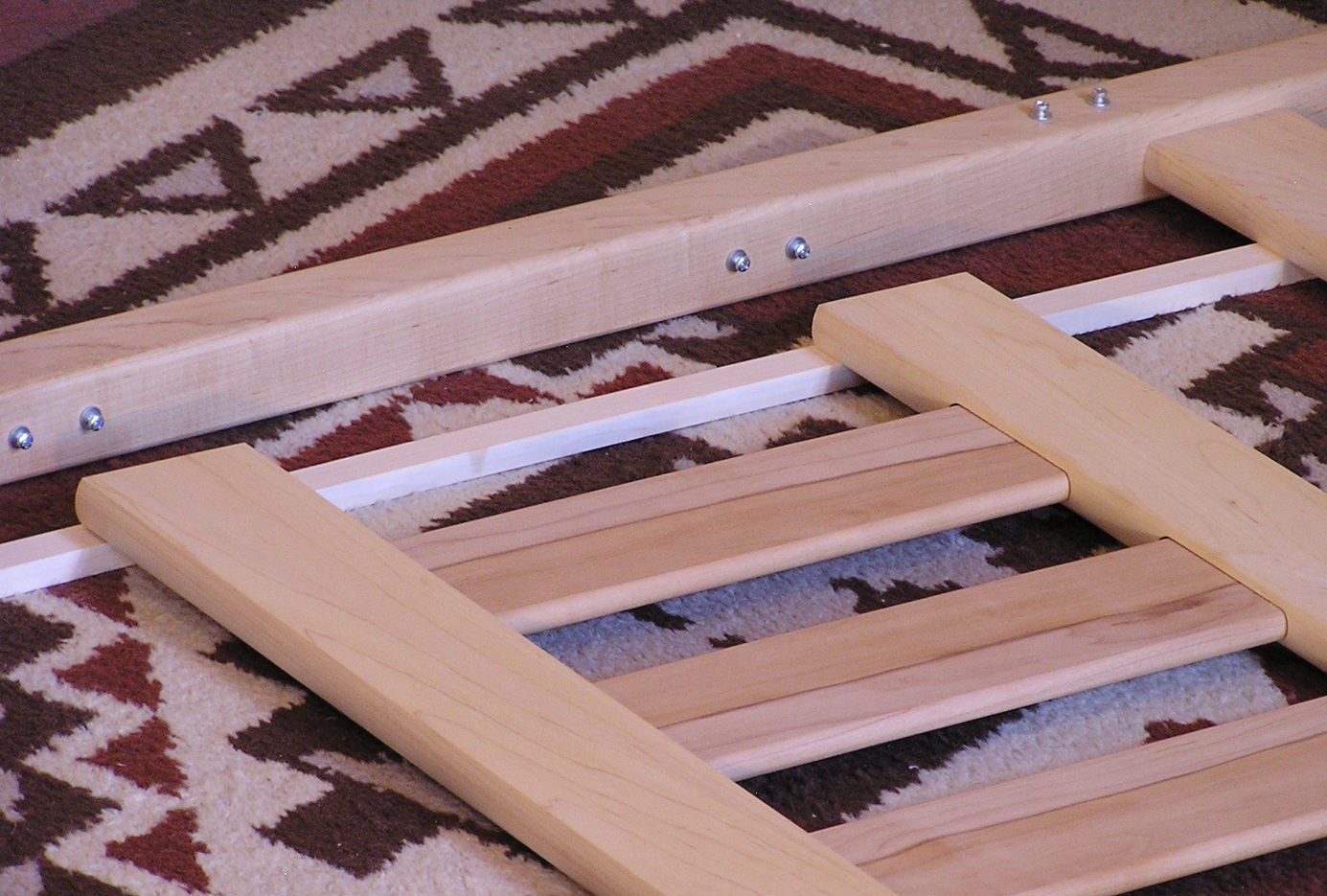

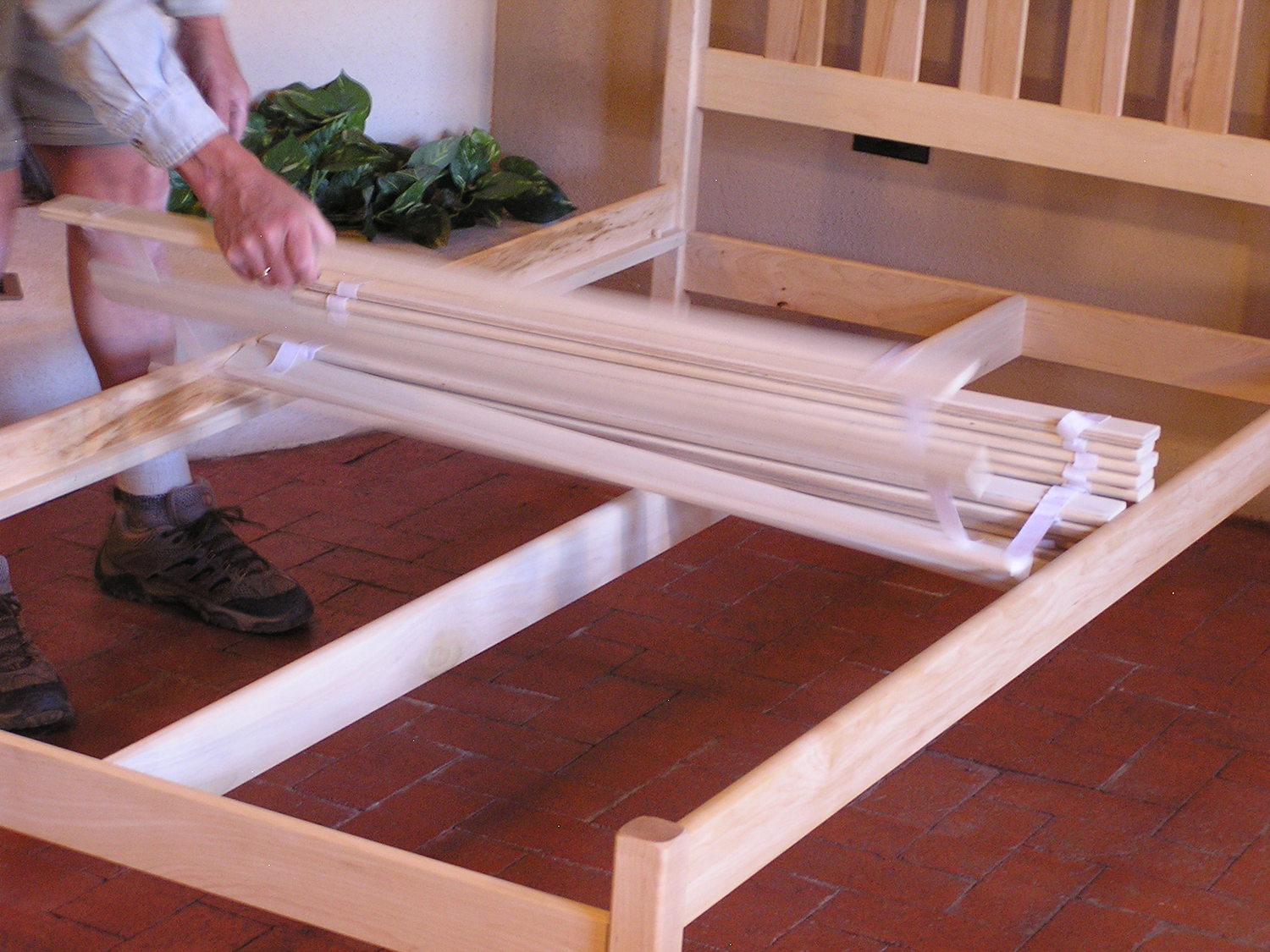

Step 14: Place the slats on the bed frame and stretch them out. The straps should be on top.

Locate the end slats

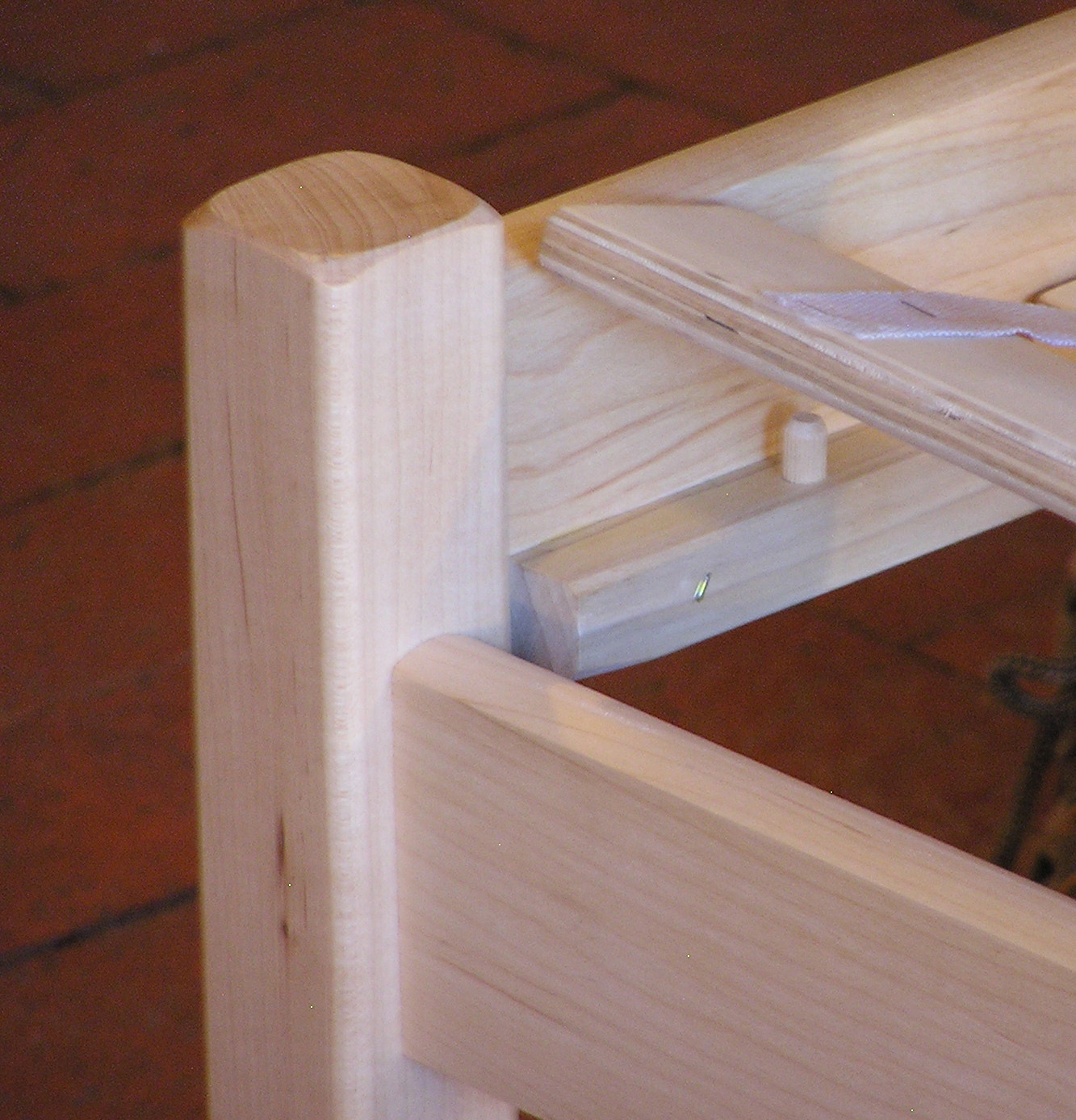

The last slat will be held in place by the dowel pins in the side rails. Both end slats will be held in place and will stretch out the slats on the frame. These dowel pins should be installed by you after the bed frame is assembled.

Almost done

Looking good!!!

Finished!

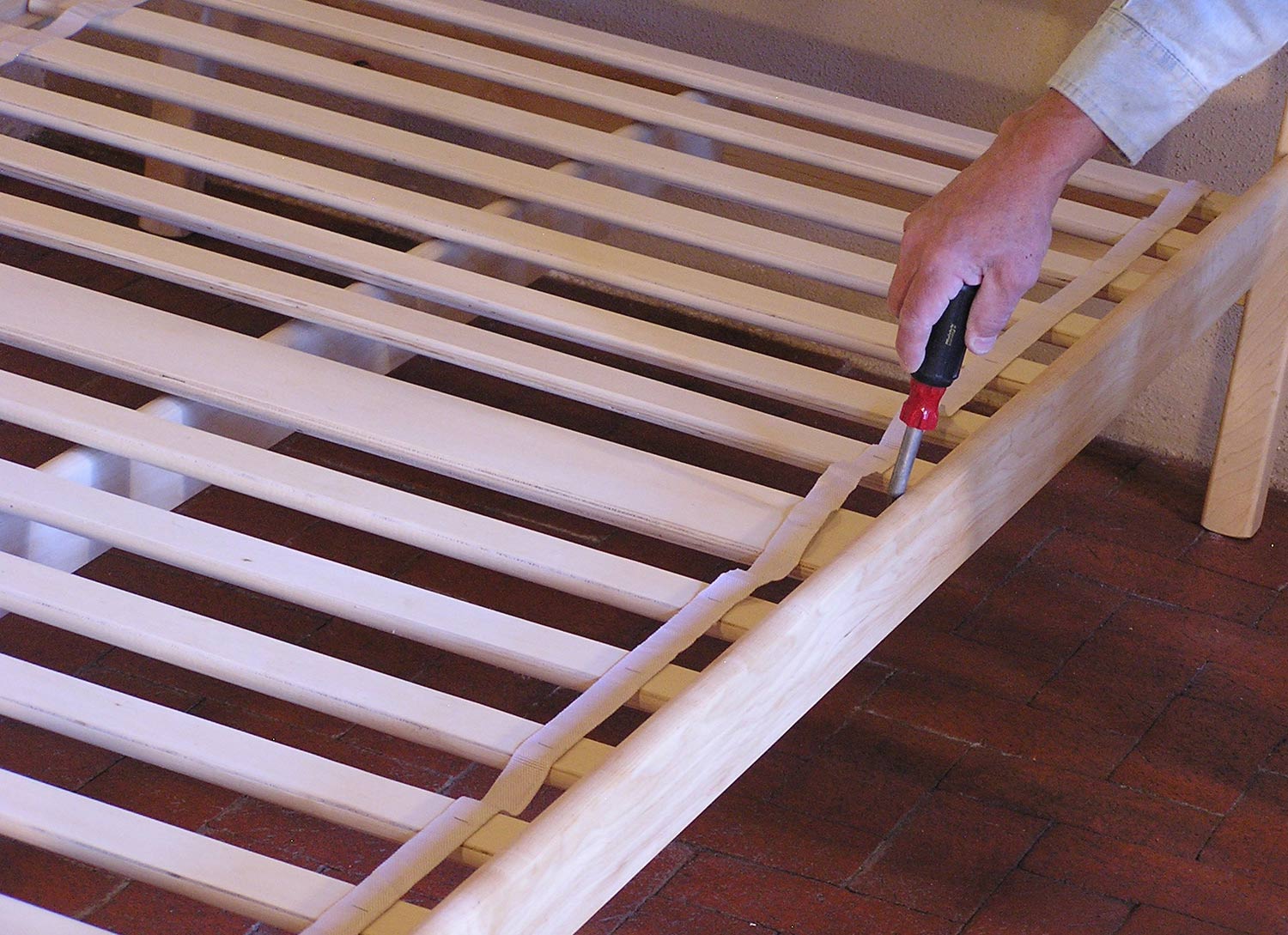

Pull the middle slat tight against the side rail. Use the two 1″ screws to screw down the slat to the side rail. Go to the other side and repeat this step.

Congratulations! You have assembled your bed.Now for the mattress.

CAUTION ON ASSEMBLY

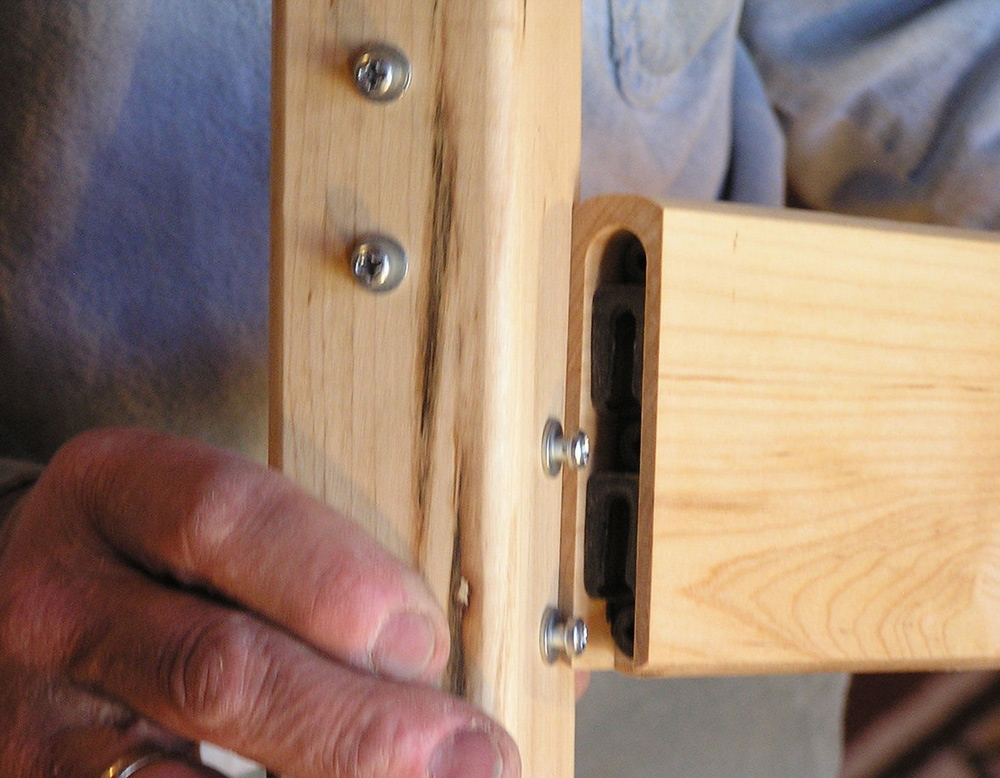

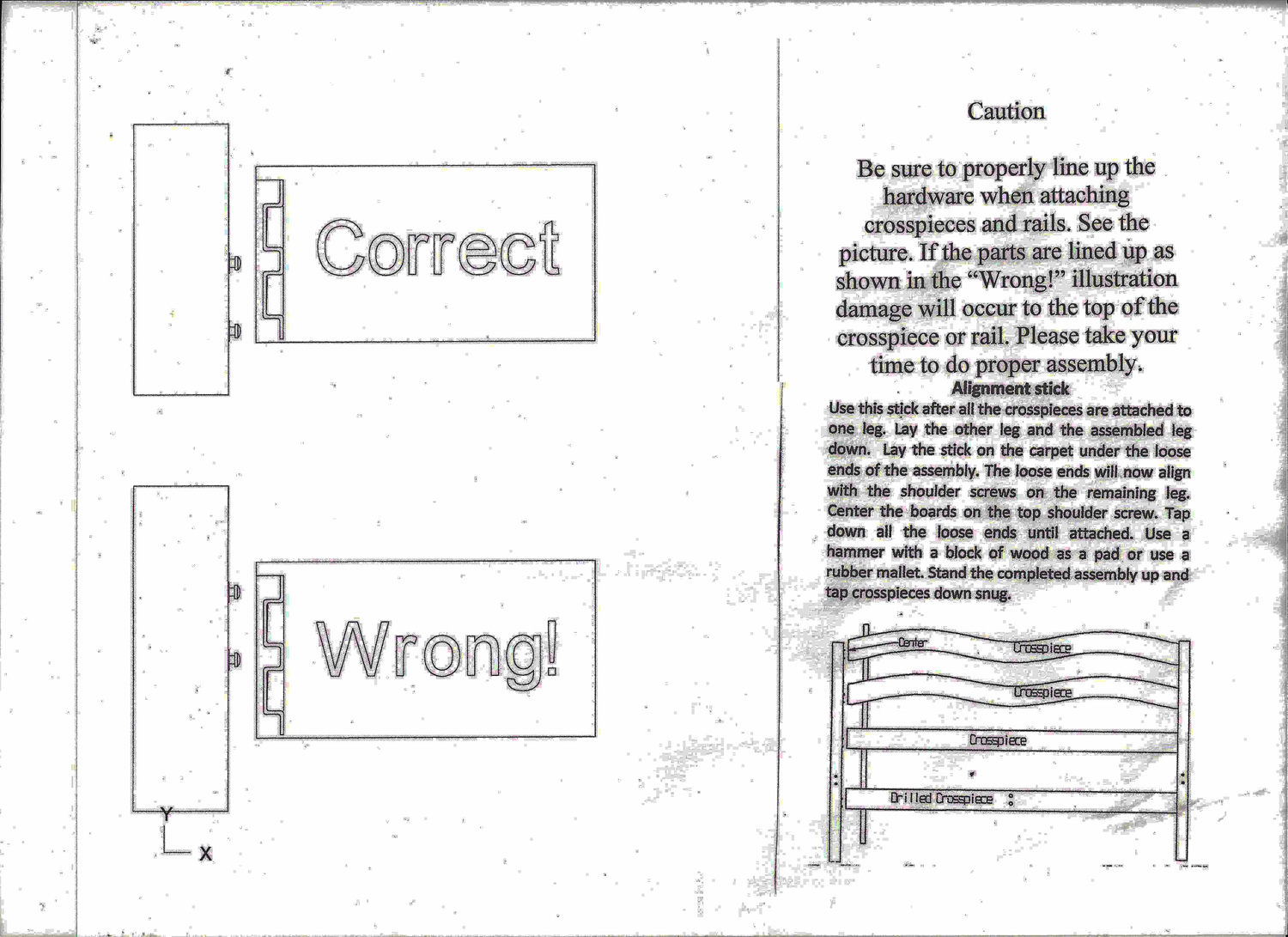

Please take special care when assembling the connectors. NOTE the Correct placement of the screws to the connector and the incorrect placement which will break the board out. Thank you.
